Manufacturer | |
---|---|
Brand | Mean Well |
Manufacturer | * Mean Well Enterprises Co. Ltd |
Country of Origin | Taiwan |
Manufacturer Warranty | 3 Years |
General Information | |

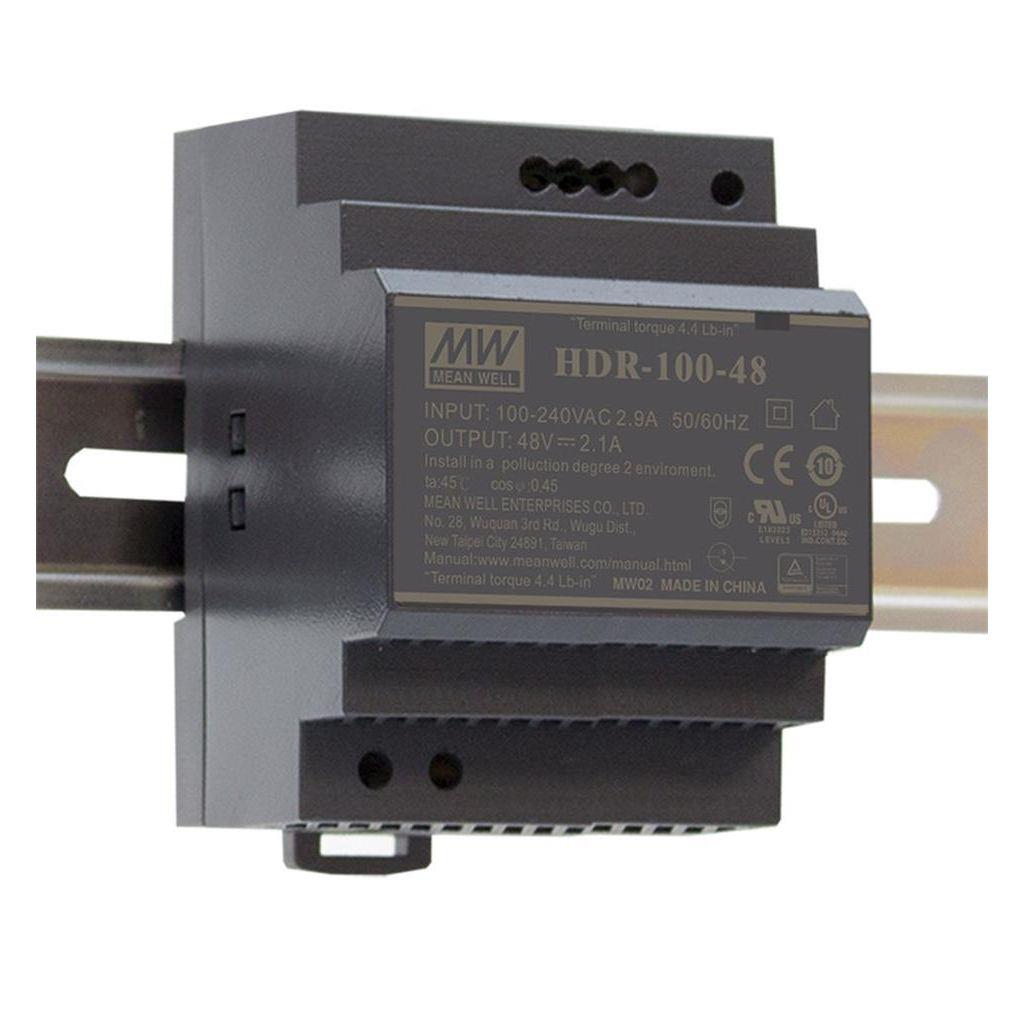

Product Type | Driver |
Product Shape | * Rectangular |
Fixation Method | k DIN Rail |
Installation Location | Indoor |
Electrical Characteristics | |
Rated Power | 85.2 or 92 or 92.2 |
Rated Current | 1.92 or 3.83 or 6.13 or 7.1 |
Output Voltage | 12 or 15 or 24 or 48 |
Adjustable Range | 12 ~ 13 or 15 ~ 17 or 24 ~ 25.5 or 48 ~ 48.7 |
Input Type | Alternating Current (AC) |
Input Voltage | 240 |
Output Type | Constant Voltage (CV) |
Output Channels | 1 Channel |
Dimming / Control | On/Off |
Housing Characteristics | |
Housing Colors | Black |
Housing Materials | Plastic |
Ingress Protection (IP) Rating | IP 20 |

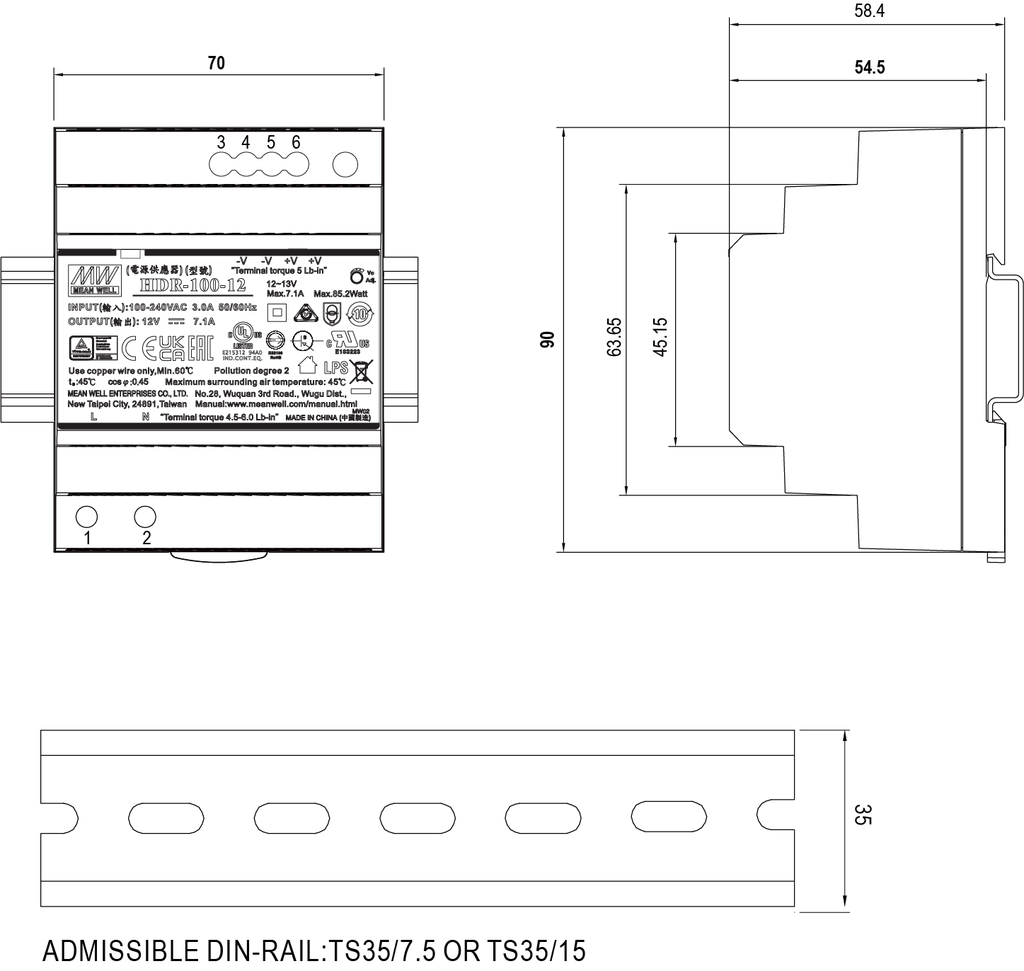

Product Dimensions | |
Housing Height | 90 |
Housing Width | 70 |
Housing Length | 54.5 |
Installation Details | |
Termination Style | Terminal Block |
Special Characteristics | |
Special Features | LED Indicator for Power On or Small & Compact Size or Adjustable Output Voltage via Built-In Potentiometer |
