Manufacturer | |
---|---|
Brand | Mean Well |
Manufacturer | * Mean Well Enterprises Co. Ltd |
Country of Origin | Taiwan |
Manufacturer Warranty | 5 Years |
General Information | |
Installation Location | Indoor or Outdoor |

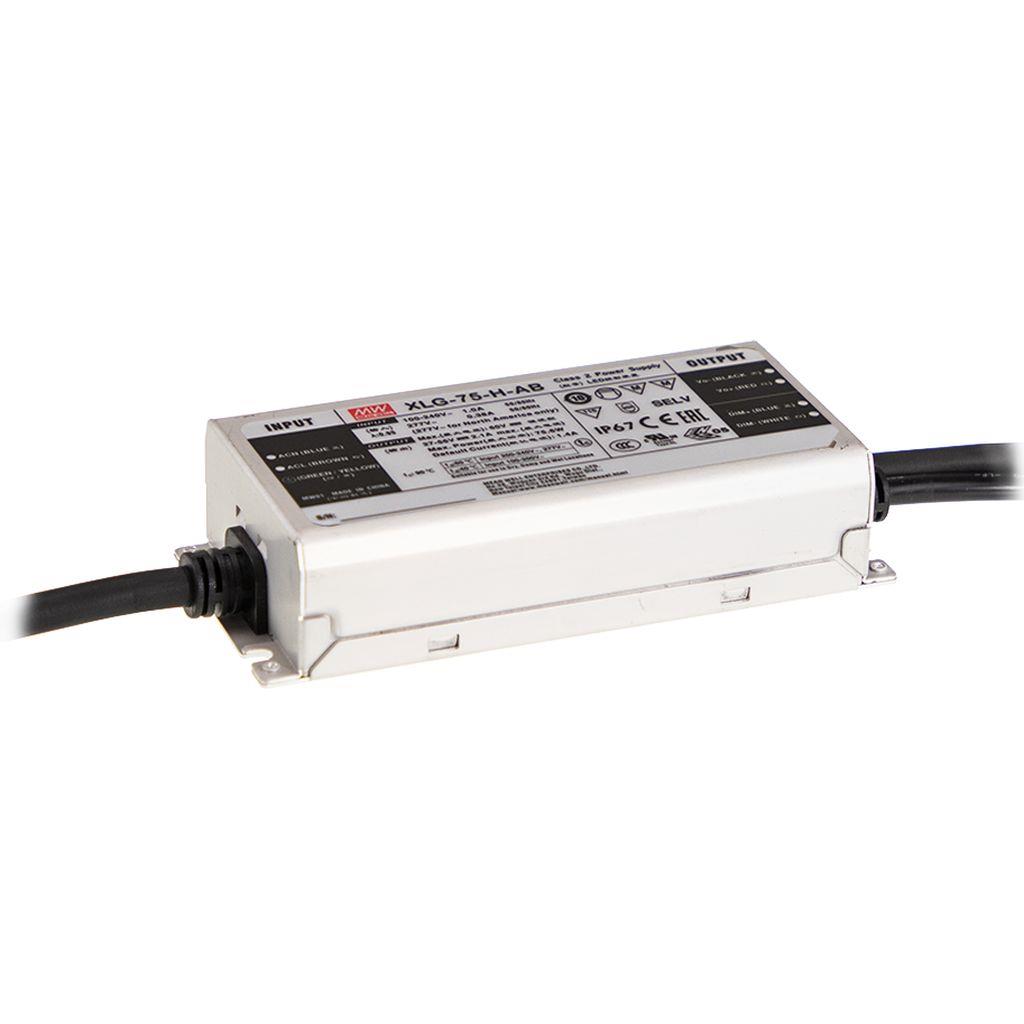

Product Type | Driver |
Product Shape | * Rectangular |
Fixation Method | Enclosed Case |
Electrical Characteristics | |
Rated Power | 60 or 74.4 |
Rated Current | 3.1 or 5 |
Output Type | Constant Voltage (CV) or Constant Power (CP) |
Output Voltage | 12 or 24 |
Adjustable Range | 8.4 ~ 12 or 16.8 ~ 24 |
Input Type | Alternating Current (AC) |
Input Voltage | 240 |
Output Channels | 1 Channel |
Dimming / Control | On/Off |
Housing Characteristics | |
Housing Colors | Aluminium |
Housing Materials | Metal |
Ingress Protection (IP) Rating | IP 67 |
Product Dimensions | |
Housing Height | 32 |
Housing Width | 63 |
Housing Length | 140 |
Installation Details | |
Termination Style | Wire Leads with Double Insulation |
Special Characteristics | |
Special Features | Cost Performance or Adjustable Output Voltage via Built-In Potentiometer |
