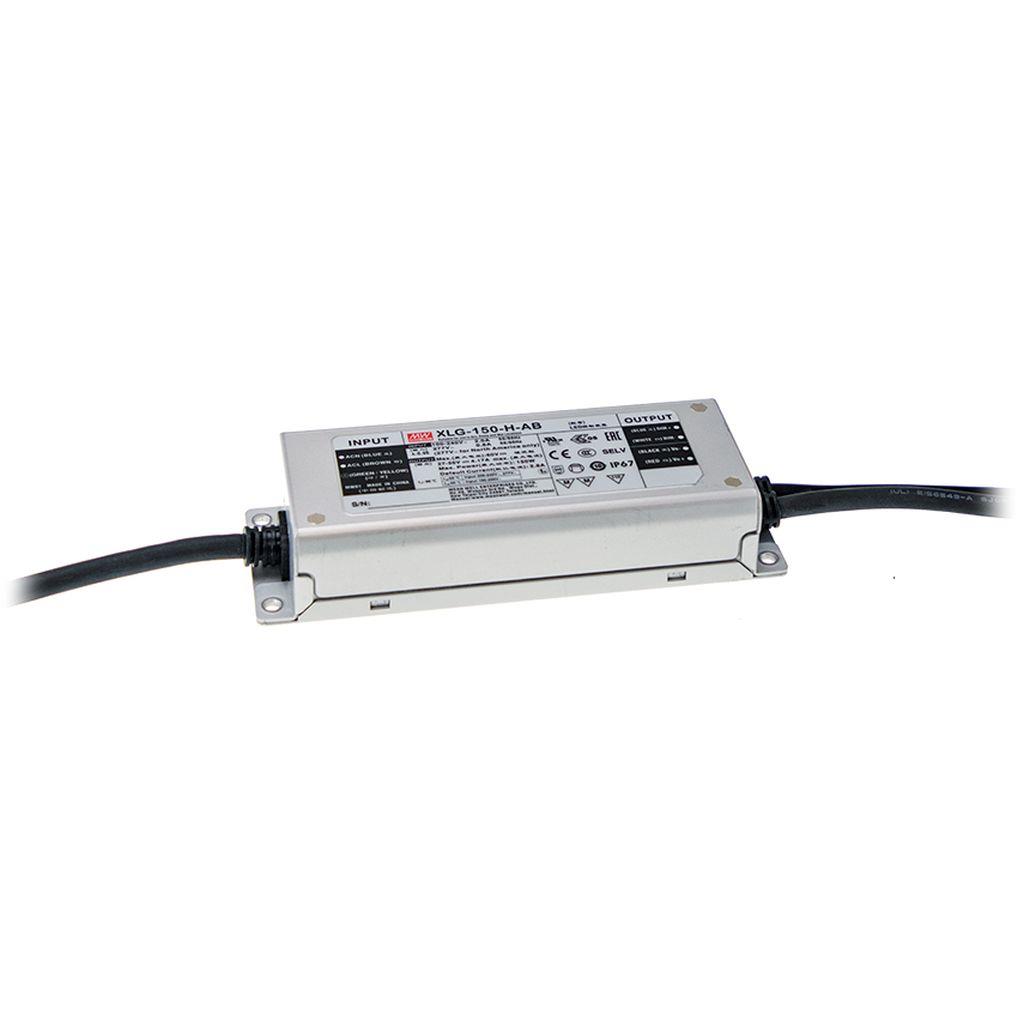

XLG Series / 150W CV LED Driver
11 sold in last 24 hours
| Manufacturer | |
|---|---|
| Brand | Mean Well |
| Manufacturer | * Mean Well Enterprises Co. Ltd |
| Country of Origin | Taiwan |
| Manufacturer Warranty | 5 Years |
| General Information | |
| Installation Location | Indoor or Outdoor |
| Product Type | Driver |
| Product Shape | * Rectangular |
| Fixation Method | Enclosed Case |
| Electrical Characteristics | |
| Rated Current | 6.25 or 12.5 |
| Output Type | Constant Voltage (CV) or Constant Power (CP) |
| Output Voltage | 12 or 24 |
| Adjustable Range | 8.4 ~ 12 or 16.8 ~ 24 |
| Input Type | Alternating Current (AC) |
| Input Voltage | 240 |
| Rated Power | 150 |
| Output Channels | 1 Channel |
| Dimming / Control | On/Off |
| Housing Characteristics | |
| Housing Colors | Aluminium |
| Housing Materials | Metal |
| Ingress Protection (IP) Rating | IP 67 |
| Product Dimensions | |
| Housing Height | 35.5 |
| Housing Width | 63 |
| Housing Length | 180 |
| Installation Details | |
| Termination Style | Wire Leads with Double Insulation |
| Special Characteristics | |
| Special Features | Cost Performance or Adjustable Output Voltage via Built-In Potentiometer |
