PWM Series / 90W CV LED Driver

PWM Series / 120W CV LED Driver
PWM Series / 120W CV LED Driver
Login to see price
PWM Series / 40W CV LED Driver
PWM Series / 40W CV LED Driver
Login to see price

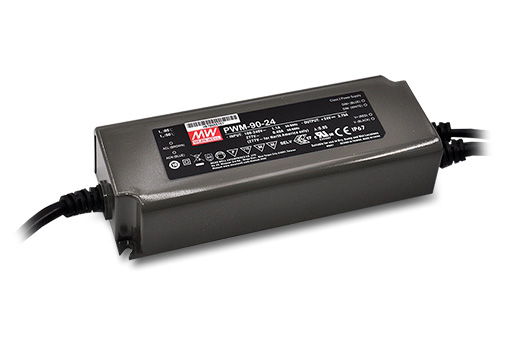

PWM Series / 90W CV LED Driver

https://www.knc.com.cy/web/image/product.template/101/image_1920?unique=626adef
3 sold in last 24 hours

Login to see price

Not Available For Sale

(€ 0.00 / pcs)
8 people are viewing this right now

  • Brand
  • Manufacturer
  • Country of Origin
  • Manufacturer Warranty
  • Product Type
  • Product Shape
  • Fixation Method
  • Installation Location
  • Input Type
  • Input Voltage
  • Rated Power
  • Rated Current
  • Output Type
  • Output Voltage
  • Adjustable Range
  • Output Channels
  • Dimming / Control
  • Housing Colors
  • Housing Materials
  • Ingress Protection (IP) Rating
  • Housing Height
  • Housing Width
  • Housing Length
  • Termination Style
  • Special Features

This combination does not exist.

Manufacturer
Brand Mean Well
Manufacturer * Mean Well Enterprises Co. Ltd
Country of Origin Taiwan
Manufacturer Warranty 5 Years
General Information
Installation Location Indoor or Outdoor
Product Type Driver
Product Shape * Rectangular
Fixation Method Enclosed Case
Electrical Characteristics
Rated Power 90 or 90.24
Rated Current 1.88 or 3.75 or 7.5
Output Voltage 12 or 24 or 48
Dimming / Control DALI Dim or DALI-2 Dim or 0-10V + 10V PWM + Resistance Dim
Input Type Alternating Current (AC)
Input Voltage 240
Output Type Constant Voltage (CV)
Adjustable Range Fixed Output
Output Channels 1 Channel
Housing Characteristics
Housing Colors Black
Housing Materials Plastic
Ingress Protection (IP) Rating IP 67

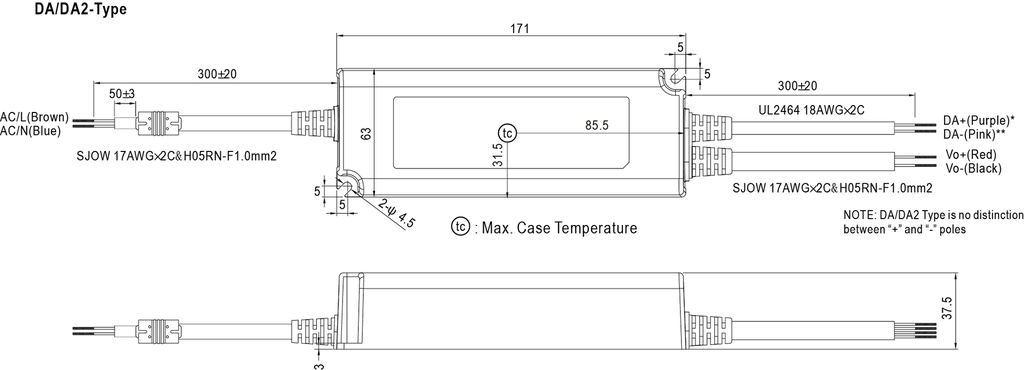

Product Dimensions
Housing Height 37.5
Housing Width 63
Housing Length 171
Installation Details
Termination Style Wire Leads with Double Insulation
Special Characteristics
Special Features Accurate Dimming
