Manufacturer | |
---|---|
Brand | Mean Well |
Manufacturer | * Mean Well Enterprises Co. Ltd |
Country of Origin | Taiwan |
Manufacturer Warranty | 5 Years |
General Information | |
Installation Location | Indoor or Outdoor |

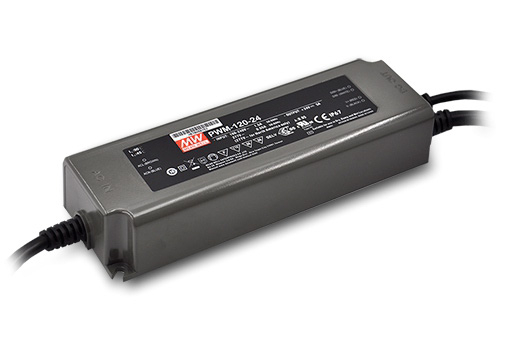

Product Type | Driver |
Product Shape | * Rectangular |
Fixation Method | Enclosed Case |
Electrical Characteristics | |
Rated Current | 2.5 or 5 or 10 |
Output Voltage | 12 or 24 or 48 |
Dimming / Control | DALI Dim or DALI-2 Dim or 0-10V + 10V PWM + Resistance Dim |
Input Type | Alternating Current (AC) |
Input Voltage | 240 |
Rated Power | 120 |
Output Type | Constant Voltage (CV) |
Adjustable Range | Fixed Output |
Output Channels | 1 Channel |
Housing Characteristics | |
Housing Colors | Black |
Housing Materials | Plastic |
Ingress Protection (IP) Rating | IP 67 |

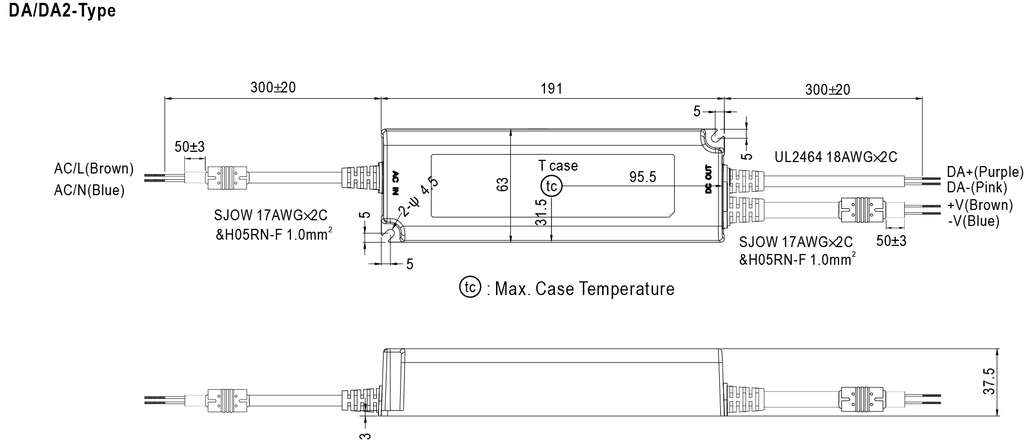

Product Dimensions | |
Housing Height | 37.5 |
Housing Width | 63 |
Housing Length | 191 |
Installation Details | |
Termination Style | Wire Leads with Double Insulation |
Special Characteristics | |
Special Features | Accurate Dimming |
