Manufacturer | |
---|---|
Brand | Mean Well |
Manufacturer | * Mean Well Enterprises Co. Ltd |
Country of Origin | Taiwan |
Manufacturer Warranty | 2 Years |
General Information | |

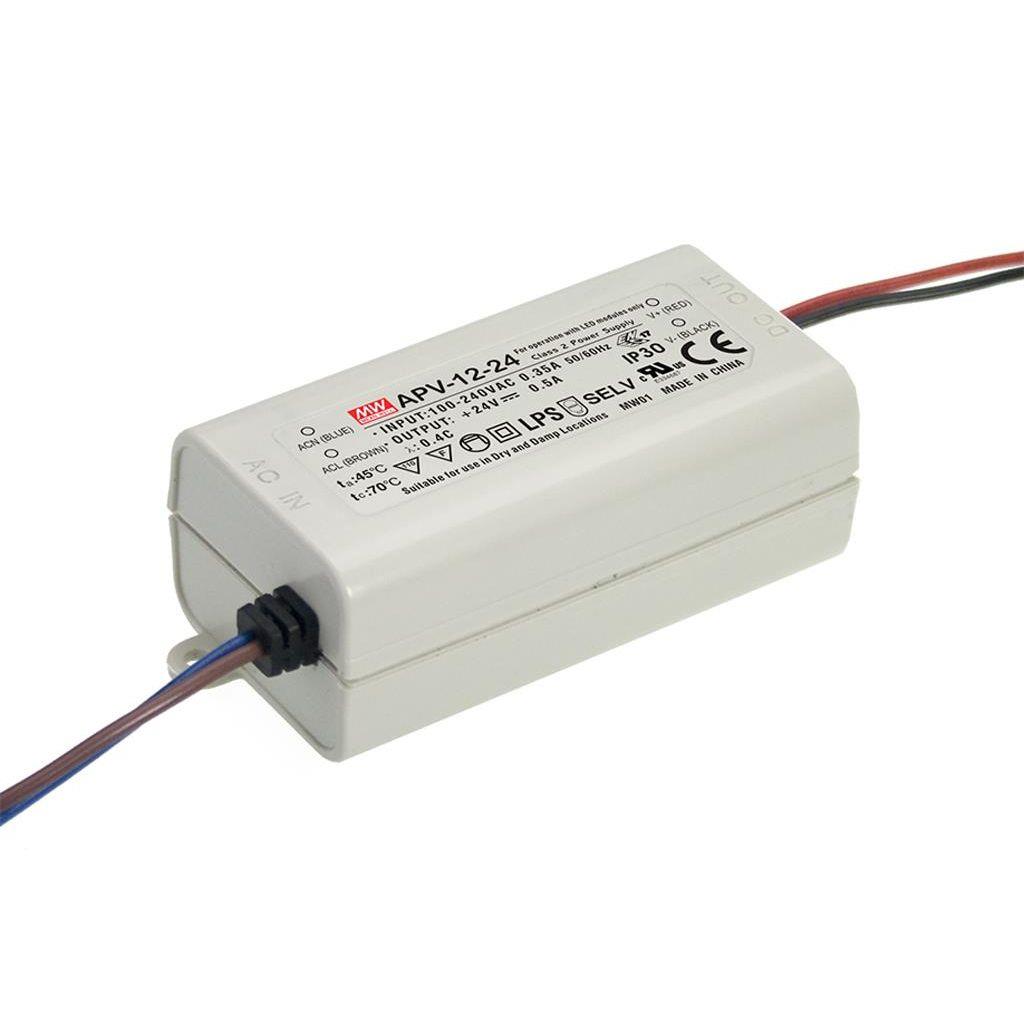

Product Type | Driver |
Product Shape | * Rectangular |
Fixation Method | Enclosed Case |
Installation Location | Indoor |
Electrical Characteristics | |
Rated Current | 0.5 or 1 |
Output Voltage | 12 or 24 |
Input Type | Alternating Current (AC) |
Input Voltage | 240 |
Rated Power | 12 |
Output Type | Constant Voltage (CV) |
Adjustable Range | Fixed Output |
Output Channels | 1 Channel |
Dimming / Control | On/Off |
Housing Characteristics | |
Housing Colors | White |
Housing Materials | Plastic |
Ingress Protection (IP) Rating | IP 42 |

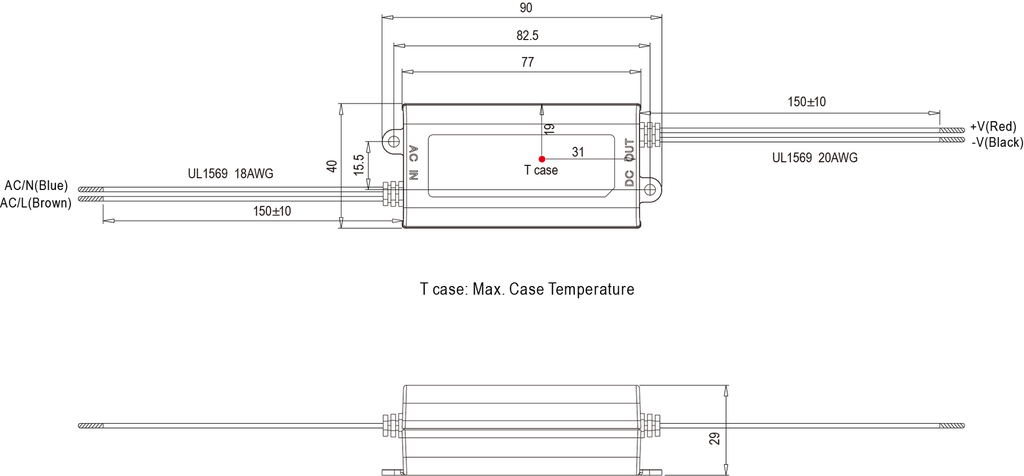

Product Dimensions | |
Housing Height | 29 |
Housing Width | 40 |
Housing Length | 77 |
Installation Details | |
Termination Style | Wire Leads |
Special Characteristics | |
Special Features | Small & Compact Size or Low Cost |
