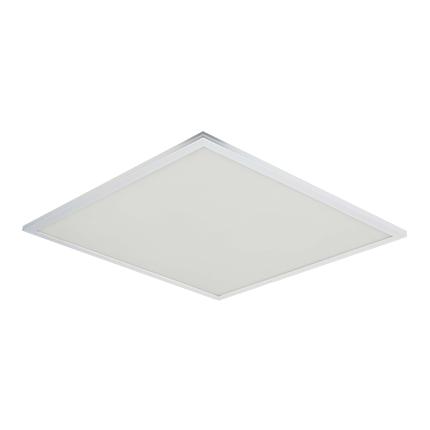

Endurance Panel 32W 600x600mm

Manufacturer
Country of Origin	Ireland or Spain
Brand	Ansell
Manufacturer	* Ansell Electrical Products Spain S.L.
Manufacturer Warranty	5 Years
General Information
Mounting Type	* Recessed or * Surface or * Suspended
Product Type	* Panel
Product Shape	* Square
Fixation Method	* Ceiling
Installation Location	Indoor
Source Characteristics
Source Power	20 or 23 or 30 or 32
Color Temperature	3000K or 4000K or 6500K
Actual / Net Luminous Flux	1860 or 1960 or 2520 or 2900 or 3000 or 3300
Light Source	LED Module
Source Quantity	1 x LED
Color Rendering Index	CRI > 80
Light Beam Angle / Reflector	80°
Light Beam / Diffuser / Optic	Opal / Milky
Light Distribution / Light Emission	Direct
Values	Given data are per Fixture
Electrical Characteristics
Input Voltage	220 or 240
Dimming / Control	On/Off or DALI Dim
Nominal Rated Lifespan	50.000 hrs or L80
Input Type	Alternating Current (AC)
Power Supply / Driver	External Driver Included
Housing Characteristics
Housing Colors	White
Housing Materials	Polycarbonate
Adjustability / Rotating	Fixed
Impact Protection (IK) Rating	IK N/A
Ingress Protection (IP) Rating	IP 20

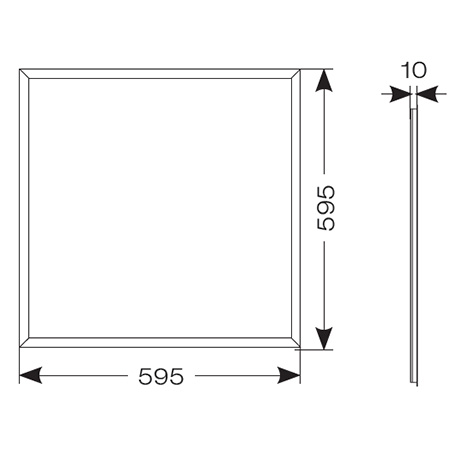

Product Dimensions
Housing Height	10
Housing Width	595
Housing Length	595
Special Characteristics
Emergency Kit	Not Emergency
Integral Sensors	No Sensors
Additional Features	UGR<19
