Optik 1 7W Ø69mm

---

• Brand

  •

• Manufacturer

  • * Onok Luz Tecnica S.L.

• Country of Origin

  • Spain

• Manufacturer Warranty

  • 3 Years
  • Upgradeable to 5 Years

• Product Type

  • * Spotlight

• Product Shape

  • * Round

• Mounting Type

  • * Recessed
  • * Framless

• Fixation Method

  • * Ceiling

• Installation Location

  • Indoor

• Light Source

  • LED COB

• Source Power

  • 7

• Source Quantity

  • 1 x LED

• Color Temperature

  • 3000K
  • 4000K

• Color Rendering Index

  • CRI > 90

• Actual / Net Luminous Flux

  • 766
  • 931

• Light Beam Angle / Reflector

  • 40°

• Light Beam / Diffuser / Optic

  • Clear

• Light Distribution / Light Emission

  • Direct

• Values

  Given data are per Fixture

• Input Type

  • Constant Current (CC)

• Input Current

  • 200

• Dimming / Control

  • On/Off
  • DALI Dim

• Power Supply / Driver

  • External Driver Included

• Nominal Rated Lifespan

  • 50.000 hrs
  • L90B10

• Housing Colors

  • Satin Black
  • Satin White

• Housing Materials

  • Aluminium
  • Polycarbonate

• Adjustability / Rotating

  • Fixed

• Impact Protection (IK) Rating

  • IK 07

• Ingress Protection (IP) Rating

  • IP 43

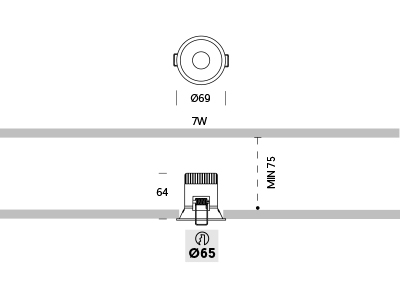

• Housing Diameter

  • 69

• Housing Height

  • 64

• Cut-Out Shape

  • Round

• Cut-Out Diameter

  • 65

• Min Mounting Depth

  • 75

• Additional Features

  • Anti-Glare Design
