Manufacturer | |
---|---|
Brand | Mean Well |
Manufacturer | * Mean Well Enterprises Co. Ltd |
Country of Origin | Taiwan |
Manufacturer Warranty | 3 Years |
General Information | |

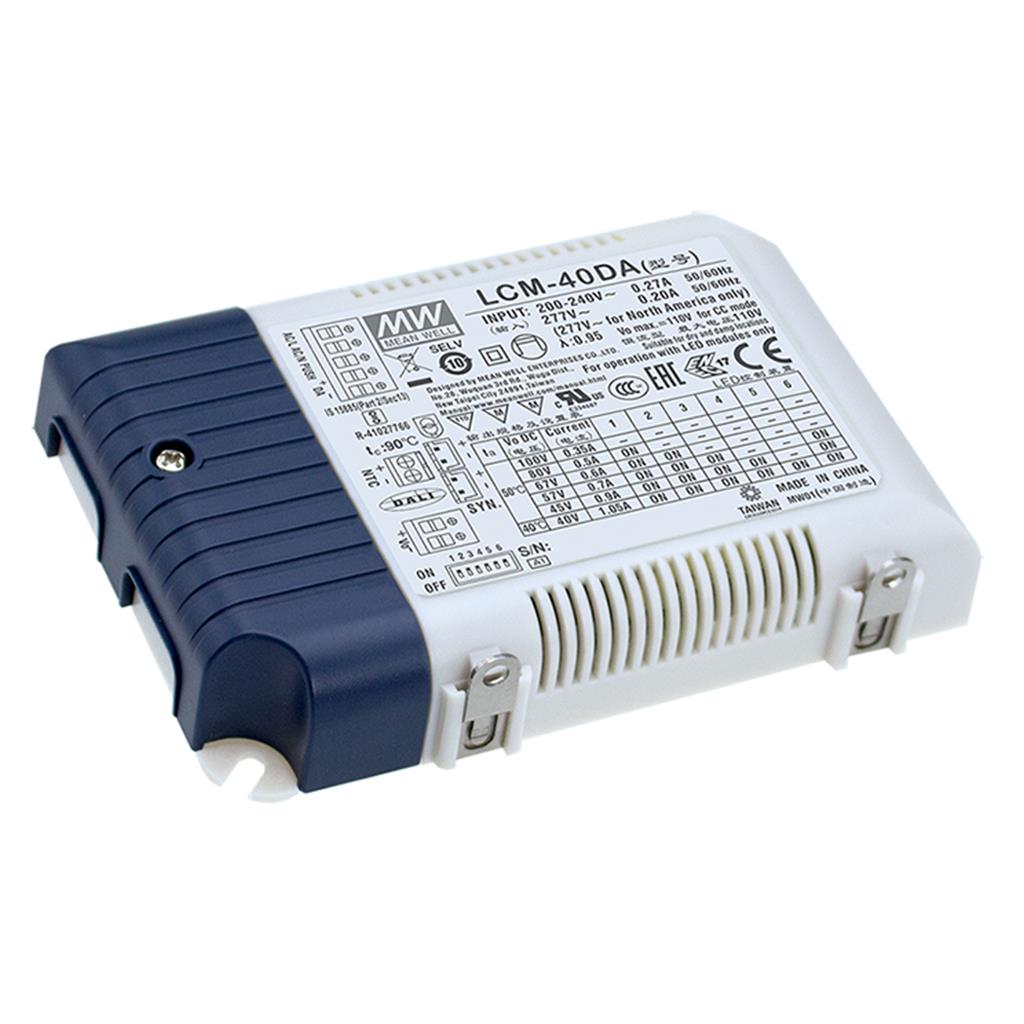

Product Type | Driver |
Product Shape | * Rectangular |
Fixation Method | Enclosed Case |
Installation Location | Indoor |
Electrical Characteristics | |

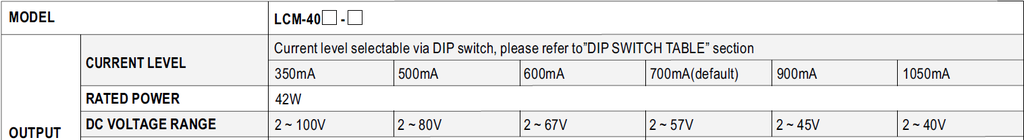

Rated Voltage | 2 ~ 40 or 2 ~ 45 or 2 ~ 57 or 2 ~ 67 or 2 ~ 80 or 2 ~ 100 |

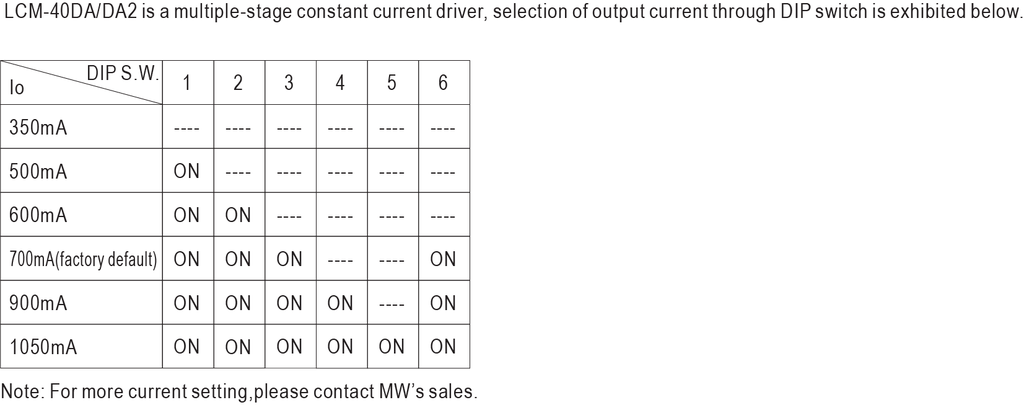

Output Current (Selectable) | 350 or 500 or 600 or 700 or 900 or 1050 |
Dimming / Control | DALI + Push Dim or DALI-2 + Push Dim or 0-10V + 10V PWM + Resistance Dim |
Input Type | Alternating Current (AC) |
Input Voltage | 240 |
Rated Power | 42 |
Output Type | Constant Current (CC) |
Output Channels | 1 Channel |
Housing Characteristics | |
Housing Colors | White |
Housing Materials | Plastic |
Ingress Protection (IP) Rating | IP 20 |

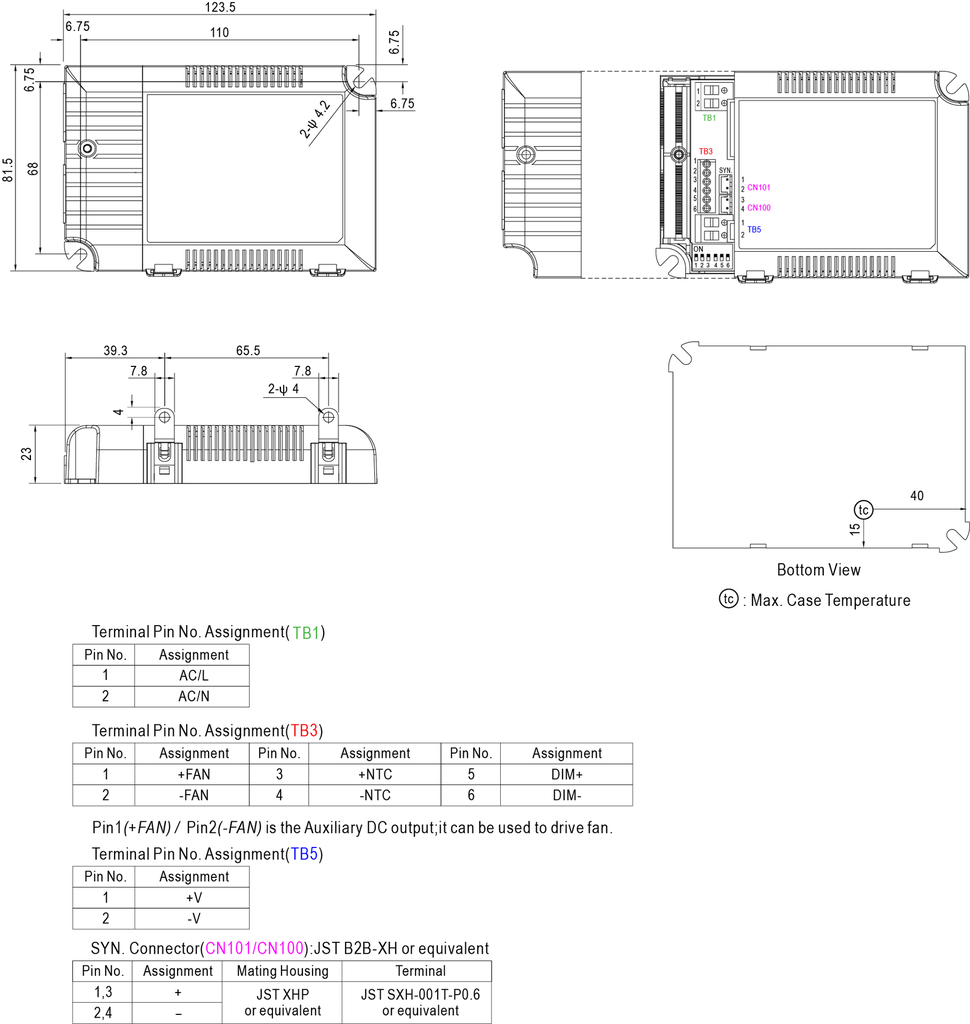

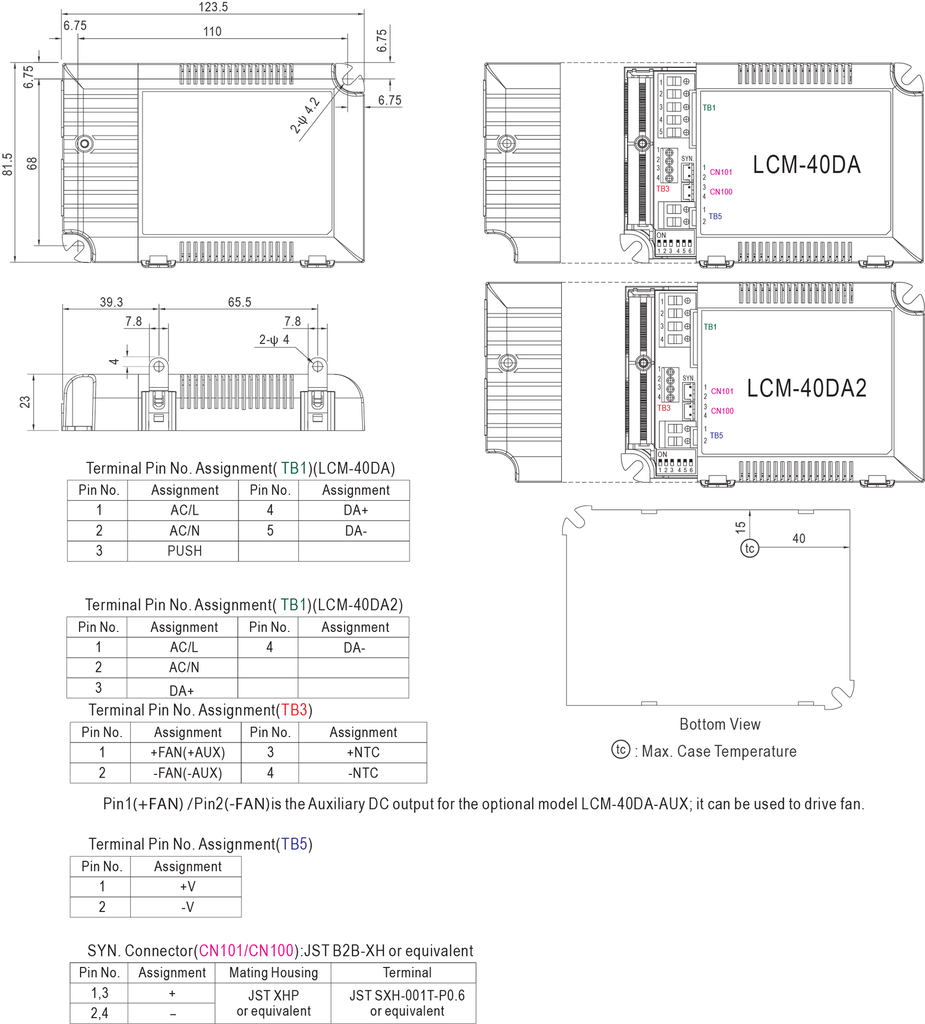

Product Dimensions | |
Housing Height | 23 |
Housing Width | 81.5 |
Housing Length | 123.5 |
Installation Details | |
Termination Style | Terminal Block |
Special Characteristics | |
Special Features | Cost Performance or Adjustable Output Voltage via Built-In Potentiometer |
