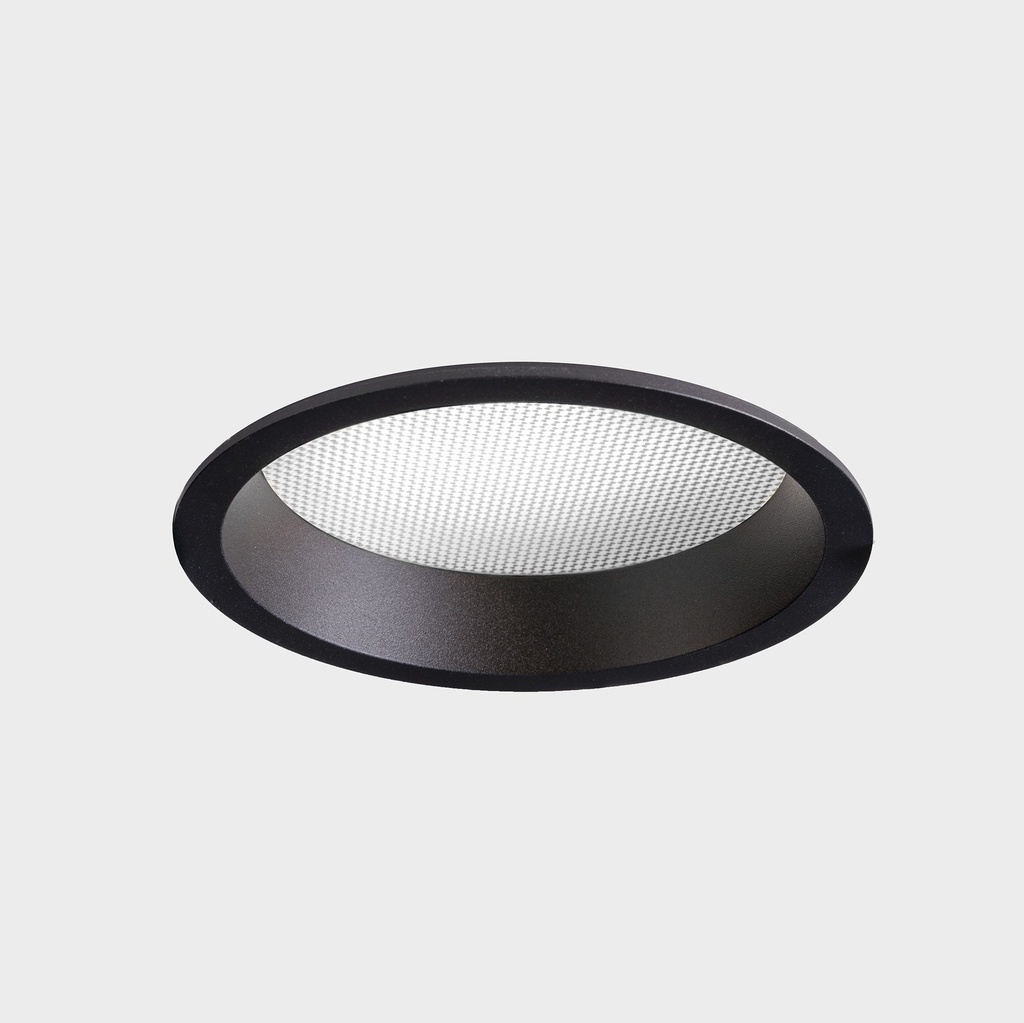

Lim Recessed 12W Ø136mm

---

• Brand

  •

• Manufacturer

  • * Kohl Lighting S.L.

• Country of Origin

  • Spain

• Manufacturer Warranty

  • 3 Years

• Product Type

  • Downlight

• Product Shape

  • * Round

• Mounting Type

  • * Recessed

• Fixation Method

  • * Ceiling

• Installation Location

  • Indoor

• Light Source

  • LED Module

• Source Power

  • 12

• Source Quantity

  • 1 x LED

• Color Temperature

  • 3000K
  • 4000K

• Color Rendering Index

  • CRI > 80

• Actual / Net Luminous Flux

  • 1030
  • 1100

• Light Beam Angle / Reflector

  • N/A°

• Light Beam / Diffuser / Optic

  • Microprismatic Opal

• Light Distribution / Light Emission

  • Direct

• Values

  Given data are per Fixture

• Input Type

  • Constant Current (CC)

• Dimming / Control

  • On/Off
  • DALI Dim
  • Phase Cut Dim
  • Push Dim

• Power Supply / Driver

  • External Driver Included

• Nominal Rated Lifespan

  • 35.000 hrs

• Housing Colors

  • Black / Black
  • White / White

• Housing Materials

  • Aluminium

• Adjustability / Rotating

  • Fixed

• Impact Protection (IK) Rating

  • IK 06

• Ingress Protection (IP) Rating

  • IP 44

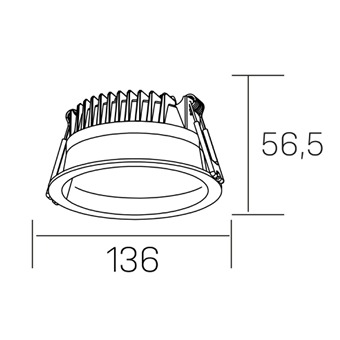

• Housing Diameter

  • 136

• Housing Height

  • 56.5

• Cut-Out Shape

  • Round

• Cut-Out Diameter

  • 120

• Additional Features

  • UGR<19

• Input Current

  • 300

• Min Mounting Depth

  • 77
