HLG Series / 480W CV LED Driver

HLG Series / 320W CV LED Driver
HLG Series / 320W CV LED Driver
Login to see price
HLG Series / 600W CV LED Driver
HLG Series / 600W CV LED Driver
Login to see price

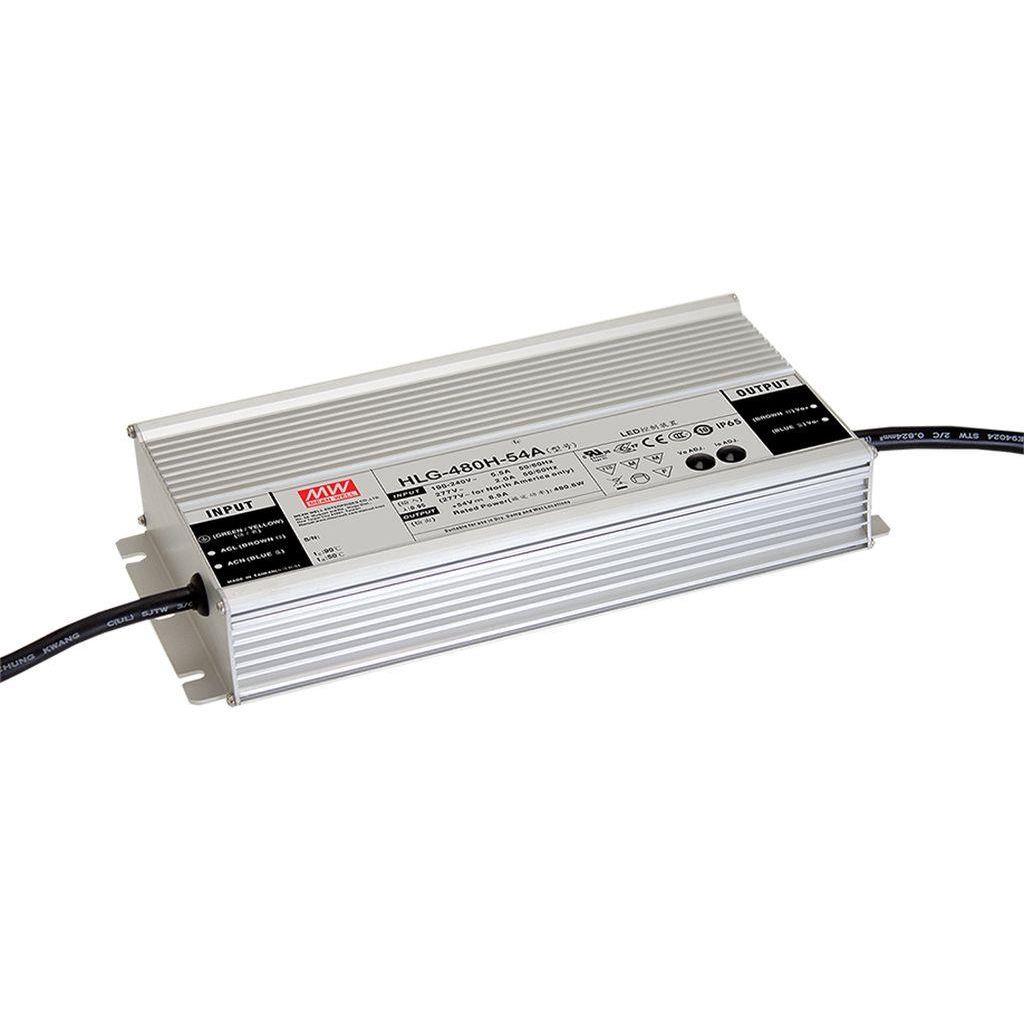

HLG Series / 480W CV LED Driver

https://www.knc.com.cy/web/image/product.template/83/image_1920?unique=626adef
9 sold in last 24 hours

Login to see price

Not Available For Sale

(€ 0.00 / pcs)
10 people are viewing this right now

  • Brand
  • Manufacturer
  • Country of Origin
  • Manufacturer Warranty
  • Product Type
  • Product Shape
  • Fixation Method
  • Installation Location
  • Input Type
  • Input Voltage
  • Rated Power
  • Rated Current
  • Output Type
  • Output Voltage
  • Adjustable Range
  • Output Channels
  • Dimming / Control
  • Housing Colors
  • Housing Materials
  • Ingress Protection (IP) Rating
  • Housing Height
  • Housing Width
  • Housing Length
  • Termination Style
  • Special Features

This combination does not exist.

Manufacturer
Brand Mean Well
Manufacturer * Mean Well Enterprises Co. Ltd
Country of Origin Taiwan
Manufacturer Warranty 7 Years
General Information
Installation Location Indoor or Outdoor
Product Type Driver
Product Shape * Rectangular
Fixation Method Enclosed Case
Electrical Characteristics
Rated Current 10 or 20
Output Voltage 24 or 48
Dimming / Control On/Off or 1-10V + 10V PWM + Resistance Dim
Input Type Alternating Current (AC)
Input Voltage 240
Rated Power 480
Output Type Constant Voltage (CV)
Adjustable Range Fixed Output
Output Channels 2 Channels
Housing Characteristics
Housing Colors Aluminium
Housing Materials Metal
Ingress Protection (IP) Rating IP 67

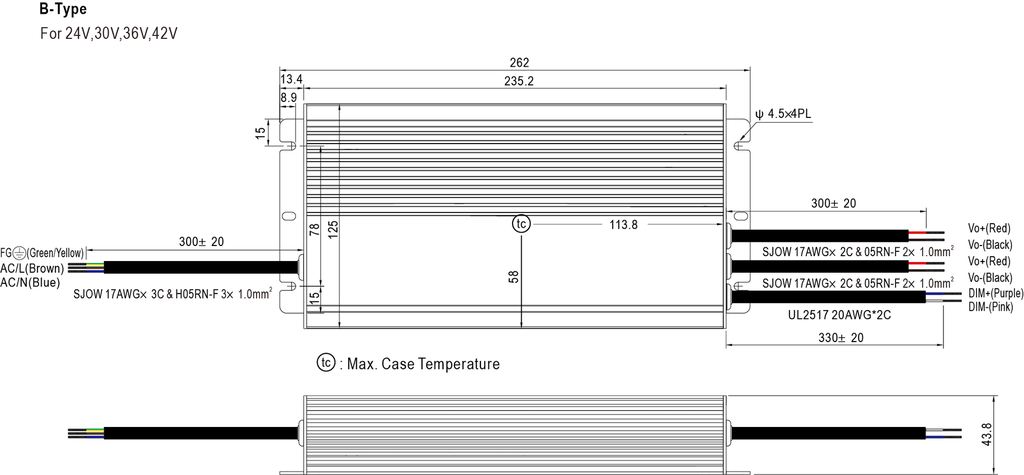

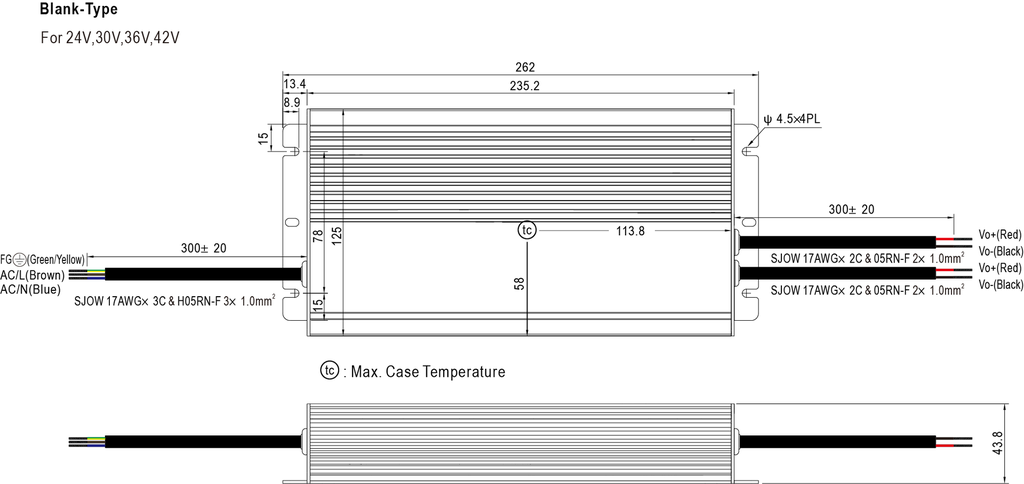

Product Dimensions
Housing Height 43.8
Housing Width 125
Housing Length 262
Installation Details
Termination Style Wire Leads with Double Insulation
Special Characteristics
Special Features High Performance
